17-Layer High-Tg Multilayer PCB, 5.5 mm Thickness

Images

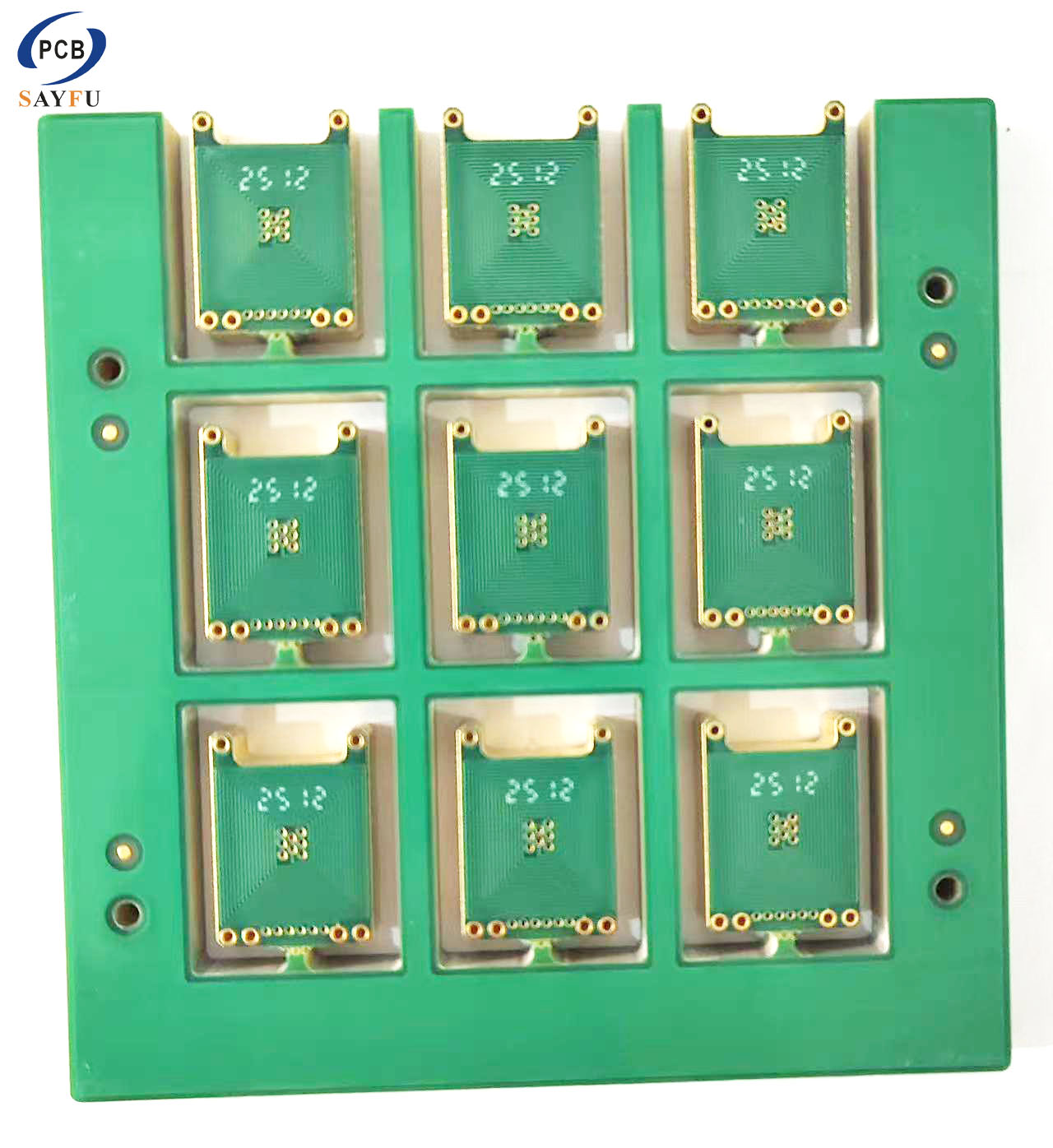

17-Layer High-Tg Multilayer PCB
  • Specification:

  • Layer Count: 17 layers
    Panel Size: 78.2 mm × 75.8 mm
    Material: FR4 TG 170 + RO4350B
    Finished Thickness: 5.5 mm
    Finished Copper: 35 µm
    Surface Finish: ENIG (Electroless Nickel Immersion Gold)
    Special Features: Metal edge plating, coil design
    Application Area: Power equipment

Contact sales
Inquire now

This 17-layer high-Tg multilayer PCB is engineered for high-power and high-reliability power equipment, where thick board fabrication, odd-layer stackup control, and high aspect ratio via plating are critical manufacturing challenges.
The board adopts a hybrid material stackup combining FR4 TG170+ and Rogers RO4350B, providing thermal stability, mechanical strength, and stable electrical performance in demanding operating environments.

Key Features:

  • Odd-layer stackup & warpage control: Symmetrical design & balanced copper reduce deformation in thick multilayer boards.
  • Thick PCB & high aspect ratio via plating: Optimized through-hole plating ensures reliable electrical performance in 5.5 mm boards.
  • Hybrid FR4 + Rogers: Rogers layers for signal integrity, FR4 layers for power & mechanical support.
  • Metal edge & coil design: Enhances grounding, EMI shielding, mechanical strength, and integrates inductive functions.

Applications:

Industrial power equipment, power supply/conversion modules, high-current control systems, energy management devices.

Manufacturing Scope:

Supports thick boards (≥5 mm), odd-layer stackups, hybrid material lamination, metal edge processing, and integrated coil structures. Customizable for prototype, small-batch, and volume production.
