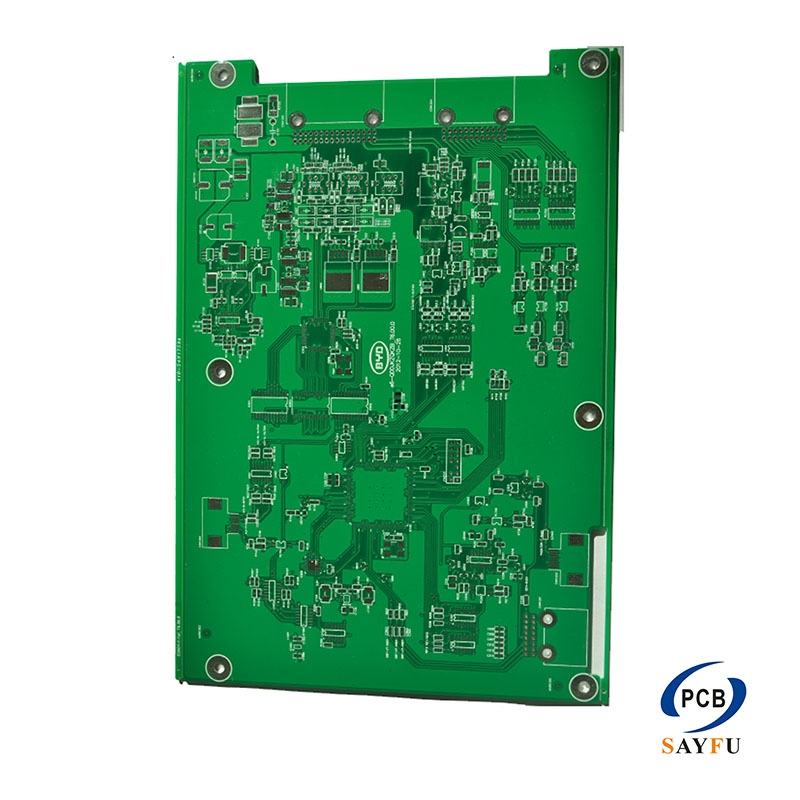

2 layers rigid PCB
Images
General Specification:
Layers:2L
Material : FR4
Finished Thickess :1.6MM
Finished Copper :1oz
Surface treatment : ENIG
Soldermask : Green soldermask
2 layers rigid PCB: SAYFU is a PCB manufacturer located in Shenzhen since 2001.With ISO 9001:2015, AS9100, TS16949 and ISO13485, we can support different customer requirement. We can cover all kinds of high- tech technologies: Rigid multi-layer PCB, Flex PCB, Hybrid PCB, HDI board,metal based board, Heavy Copper PCB etc.
SAYFU Advantage:
- Layer counts: 1-38 Layers
- Maximum size: 550x1600mm
- Material: CEM1,CEM3,FR-4,High Tg FR-4,Halogen free,High Frequency(Rogers,Arlon,Taconic,Nelco…), Aluminium base, Copper base
- Board outline tolerance: ±0.10mm
- Board thickness: 0.1-6.0mm
- Thickness tolerance: ( t ≥0.8mm) ±8%
- Thickness tolerance: ( t <0.8mm) ±10%
- Out layer copper thickness : H oz -20 oz
- Inner layer copper thickness: 1/2 oz -10oz
- Minimum line/ space: 0.075mm
- Minimum finished hole: (mechanical) 0.15mm
- Minimum finished hole: (laser) 0.1mm
- Aspect ratio:15:1
- Impedance control tolerance: ±10%
- Bow and twist: Max. 0.7%
- HDI PCB stack up: 1+N+1,2+N+2,1+1+N+1+1,3+N+3
- Surface Treatment: HASL, HASL Lead Free, ENIG,Immersion Silver, Immersion Tin, Flash Gold, Golden Finger, OSP, Carbon Ink, Peelable Mask.
- Microvia & ELIC technology
