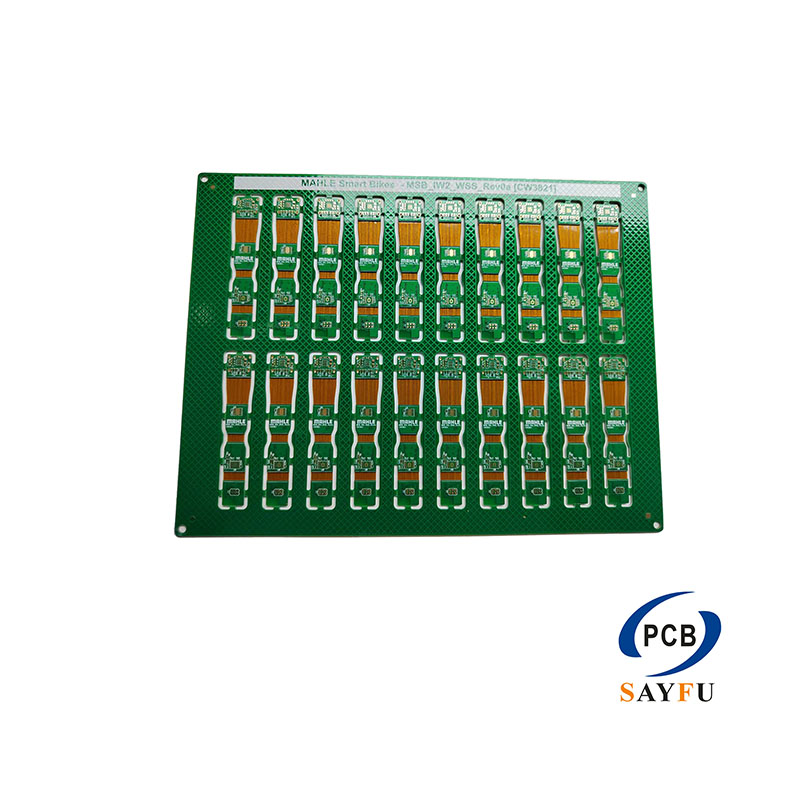

2 Layers RIGID-FLEX PCB
Images
General Specification:
2 Layers RIGID-FLEX PCB
Material : FR4+ Polyimide
Finished Thickess : 1.2mm+0.13 PI
Finished Copper : Inner17um/Outer35um
Surface treatment : ENIG
Soldermask : Green soldermask+yellow overlay
Min hole : 0.1mm
total hole: 130000
Why choosed us ?
2 Layers RIGID-FLEX PCB—China pcb manufacturer SAYFU PCB FABRICATION CAPABILITIES
Smallest drill size of 0.1mm (~4mil)
1 to 36 layers
Rigid (standard FR4), Flex, Aluminum backed.
FR4*, Rogers, Duriod, Polyimide, CEM1,3, etc.
PCB Fabrication thickness starting at 8mil for Rigid and 0.2mm for Flex.
0.4 ounce to 4 ounce copper
Finishes include; immersion Gold, Silver, Tin, Lead free HASL and OSP.
Board finish colors; Green, Blue, Black, Yellow, Red, White.
Application: Mobile phones, keypads and side buttons, computers and LCD screen, motherboards and displays,CD players, floppy disk drives,NOTEBOOK computers, hard disk drive etc.
SAYFU is a PCB manufacturer located in Shenzhen since 2001.With ISO 9001:2015, AS9100, TS16949 and ISO13485, we can support different customer requirement. We can cover all kinds of high- tech technologies: Rigid multi-layer PCB, Flex PCB, Rigid-flex pcb, HDI board,metal based board etc.
