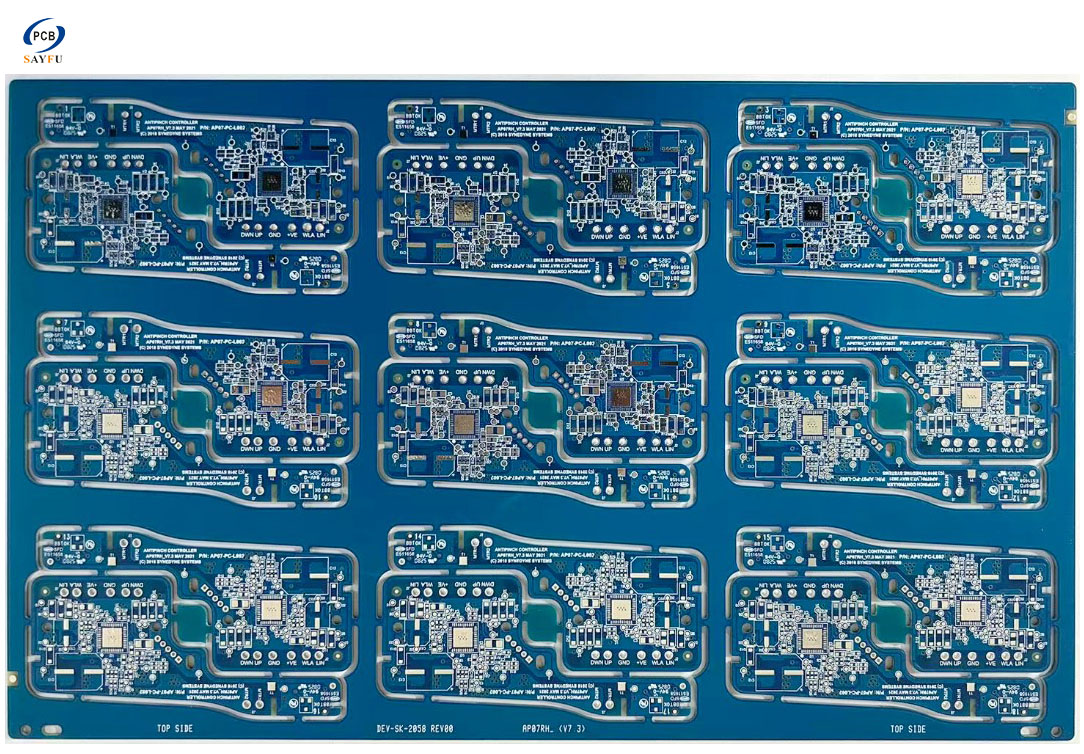

Automotive PCB

Images

  • Layer No: 6 layers
    Panel size/mm: 290mm*179mm
    Material: FR4TG 170
    Finished Thickess: 1.6mm
    Finished Copper: 2um
    Surface treatment: HASL-LF
    Special Technology: lPC 3
    Application area: Automobile
Contact sales
Inquire now

The Automotive PCB is a 6-layer FR4 TG170 multilayer board designed for high-reliability automotive applications. With a 1.6 mm thickness, 2 μm finished copper, and HASL-LF surface finish, it ensures excellent thermal stability and solderability. Certified to IPC Class 3, this PCB meets stringent automotive quality standards, supporting signal integrity and power distribution for engine control units, infotainment systems, and other vehicle electronics. Its large panel size (290 × 179 mm) allows flexible integration into complex automotive modules, while the manufacturing process ensures consistent performance and durability under demanding operating conditions.

Automotive PCB Key Features:

  • Automotive-grade FR4 TG170: High thermal stability ensures reliable operation under automotive temperature cycles.
  • 6-layer stackup: Optimized for signal integrity and power distribution in automotive electronics.
  • HASL-LF surface finish: Lead-free, solderable surface compatible with modern automotive assembly processes.
  • IPC 3 certification: Guarantees high quality and compliance with automotive PCB standards.
  • Panel size 290 × 179 mm: Large-format PCB suitable for automotive modules and control systems.

Applications:

Automotive electronics, engine control units (ECU), infotainment systems, power modules, and other vehicle electronics requiring high reliability.

Manufacturing Scope:

Supports multi-layer automotive PCB fabrication, large panel sizes, IPC class 3 assembly, and custom process requirements for prototype and small/volume production.

Why choose us?

High frequency PCB raw material in our stock ,such as Rogers ,Alron,HF based material which is wildly used communication system,automobile,5G comounication.

SAYFU is a PCB manufacturer located in Shenzhen since 2001.With ISO 9001:2015, IATF 16949 and ISO13485, we can support different customer requirement. We can cover all kinds of high- tech technologies: Rigid multi-layer PCB, Flex PCB, Hybrid PCB, HDI board,metal based board,Heavy Copper PCB, High frequency PCB etc.

Payment term:TT 30-60 days payment term after shipment(No deposit )

Around 600 full time staff with a capacity of 60ksqm per month, 12,000 square meter of factory

SAYFU is a professional PCB supplier from 1 layer up to 24 layer including special HDI technology, special material like Rogers, ISOLA, M4, M6.

Key information for you about SAYFU:Total 20 years’ experience on multi-layer PCB industry.

With 20 years experience on PCB business.

Very flexible on all kinds of order volumes with very aggressive cost.

Support both FOB HK and DAP service
