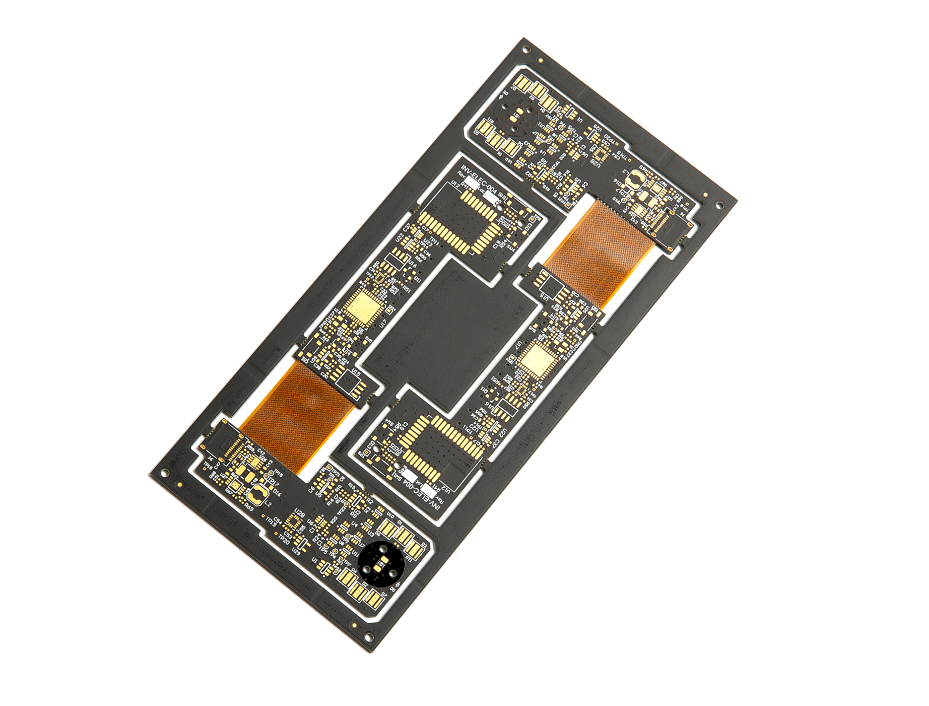

8Layer Rigid flexible printed circuit board
Images
General Specification:
Layer No: 8 layer (Rigid part#8 layer & Flex part#2 layer)
Unit size/mm:14.50mm*119.20mm
Panel size/mm: 14.50mm*119.20mm
trace width/space: 0.10mm/0.10mm;
Material: IT180A + PI
Finished Thickess: 1.20mm
Finished Copper: h/h/h/h/h/h/h/hoz
Surface treatment: ENIG
Soldermask: Black
Silkscreen: White
Profile Method: CNC Routing+Mouse bite
Why choosed us ?
Rigid-flex pcb—China pcb manufacturer SAYFU PCB FABRICATION CAPABILITIES
Smallest drill size of 0.1mm (~4mil)
1 to 36 layers
Rigid (standard FR4), Flex, Aluminum backed.
FR4*, Rogers, Duriod, Polyimide, CEM1,3, etc.
PCB Fabrication thickness starting at 8mil for Rigid and 0.2mm for Flex.
0.4 ounce to 4 ounce copper
Minimum Trace / Space of 3mil.
Finishes include; immersion Gold, Silver, Tin, Lead free HASL and OSP.
Board finish colors; Green, Blue, Black, Yellow, Red, White.
SAYFU is a PCB manufacturer located in Shenzhen since 2001.With ISO 9001:2015, AS9100, TS16949 and ISO13485, we can support different customer requirement. We can cover all kinds of high- tech technologies: Rigid multi-layer PCB, Flex PCB, Rigid-flex pcb, HDI board,metal based board etc.
