Single sides double layers
Images
General Specification:
Product parameters

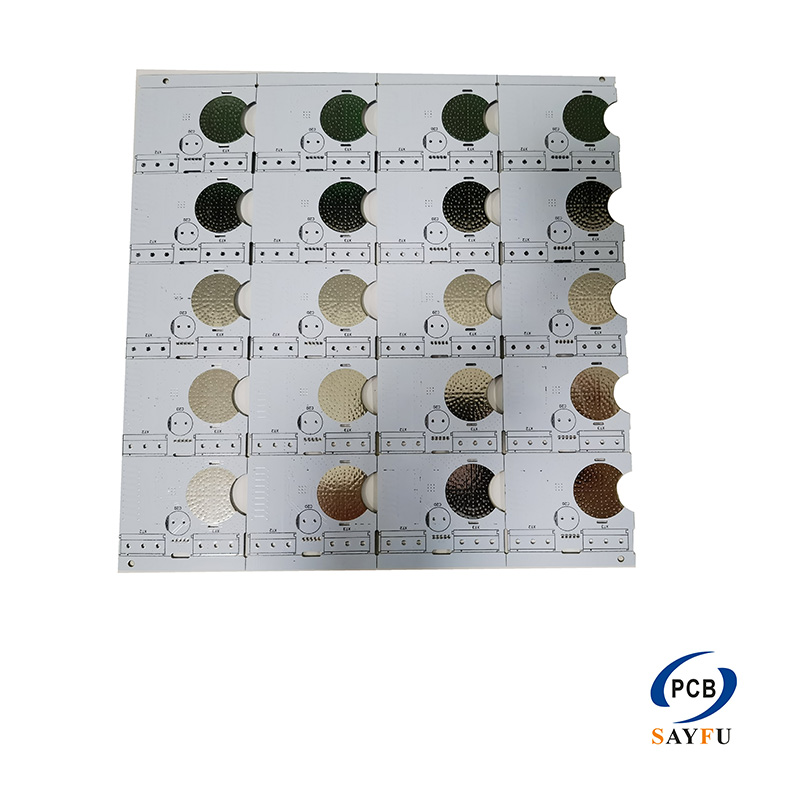

Material :aluminum Base
Finished product thickness :1.6mm
Copper thickness :2oz
Dielectric layer thickness:220UM
Solder mask/Silk screen:White ink/black characters
Surface treatment ：HASL
Thermal conductivity ：2.0W/M.K
Thermal resistivity ：0.6℃/W
Application：Stage Lamp, High Power Lighting
SAYFU is a PCB manufacturer located in Shenzhen since 2001.With ISO 9001:2015, AS9100, TS16949 and ISO13485, we can support different customer requirement. We can cover all kinds of high- tech technologies: Rigid multi-layer PCB, Single sides double layers,Flex PCB, Hybrid PCB, HDI board,metal based board etc.
Payment term:TT 30-60 days payment term after shipment(No deposit )
Around 500 full time staff with a capacity of 60ksqm per month, 12,000 square meter of factory
SAYFU is a professional PCB supplier from 1 layer up to 24 layer including special HDI technology, special material like rogers, ISOLA, M4, M6.
Key information for you about SAYFU:Total 20 years’ experience on multi-layer PCB industry.
With 20 years experience on PCB business.
Very flexible on all kinds of order volumes with very aggressive cost.
Support both FOB HK and DAP service
A professional quality team to guarantee reliable quality.
