3D printing can help engineers build early circuit board concepts faster, especially when a team wants to test form, routing ideas, sensor placement, or conductive patterns before using conventional PCB fabrication. It does not replace standard PCB manufacturing for most production boards. The useful question is where additive PCB prototyping helps, and where conventional fabrication is still the better path.
What Additive PCB Prototyping Tries to Solve
Traditional PCB prototypes require design files, fabrication, shipping, and sometimes assembly before engineers can test an idea. Additive circuit board systems try to shorten that loop by printing conductive paths and insulating materials directly on a substrate or printed structure.
This can be useful for laboratory experiments, sensor concepts, educational work, enclosure-integrated electronics, and early design checks where speed matters more than final production performance. It can also help teams explore non-flat shapes or unusual mechanical integration before committing to a formal PCB stackup.
Conductive Ink and Material Limits Matter
Printed conductors are not the same as etched copper on a conventional PCB. Conductive inks, extrusion materials, curing behavior, adhesion, oxidation, surface roughness, and trace geometry can all affect resistance and reliability. A printed circuit that works for a low-current test fixture may not be suitable for high-speed signaling, power conversion, heat exposure, vibration, or long-term field use.
Engineers should check the actual conductor material, minimum trace width, spacing, layer registration, via method, dielectric behavior, and environmental limits. These values must come from the printer material system and process data, not from assumptions based on standard FR-4 PCB fabrication.
When Conventional PCB Fabrication Is Still Needed

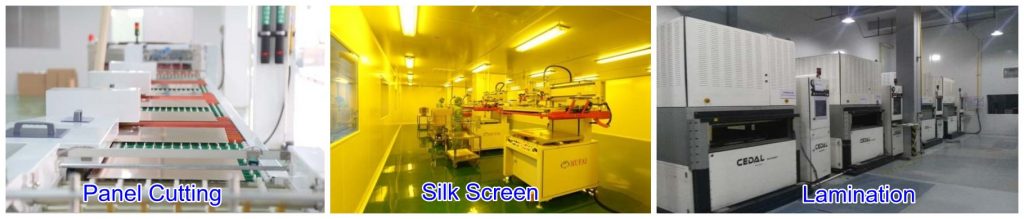

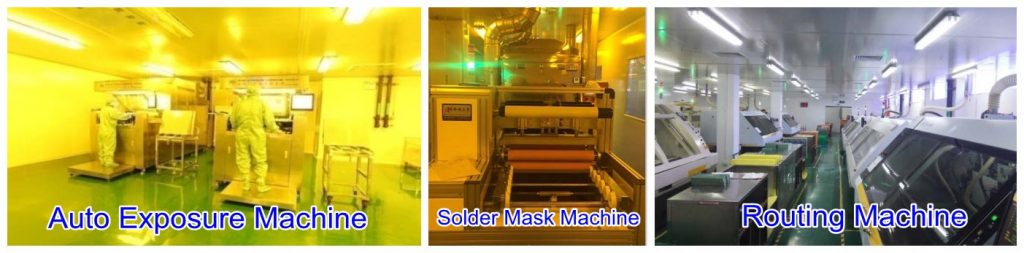

Most production electronics still need conventional PCB fabrication because it offers controlled copper thickness, mature laminate choices, solder mask, plated through holes, surface finishes, repeatable testing, panel processing, and established assembly compatibility. These factors are important when a product moves beyond concept validation.
For multilayer boards, fine pitch packages, controlled impedance, high current paths, RF layouts, or reliability-sensitive applications, the design should be reviewed through normal PCB fabrication rules. Additive prototypes may support learning, but production release still needs a manufacturable stackup and qualified process.
How Engineers Should Evaluate a 3D-Printed Board
Before using a printed board in development, engineers should define what the prototype is expected to prove. If the goal is mechanical fit or sensor placement, additive methods may be enough. If the goal is electrical performance, the test plan should measure resistance, continuity, thermal behavior, signal quality, and repeated handling.
The safest approach is to treat the printed board as an engineering prototype, not as automatic proof that the final PCB will behave the same way. When the product concept becomes stable, the design should be translated into standard PCB manufacturing files and reviewed for DFM, stackup, material, assembly, and testing requirements.
