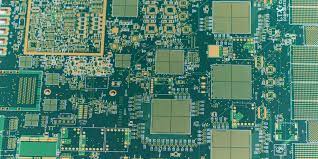

PCB boards are the foundation of electronic products. They provide electrical connections, mechanical support, heat paths, and a stable platform for component assembly. A well-designed PCB is not judged only by whether the circuit works on the bench. It also needs to support manufacturing, testing, assembly, and long-term operation.
Understanding PCB board characteristics helps engineers choose the right structure, material, and fabrication requirements before production begins.
Electrical Characteristics
The main electrical function of a PCB is to connect components through traces, pads, vias, planes, and controlled copper features. Trace width, spacing, copper thickness, dielectric material, layer stackup, and return paths all affect electrical behavior.
For low-speed boards, basic continuity and spacing may be the main concerns. For high-speed, high-current, RF, or impedance-controlled boards, electrical characteristics need closer review. Poor layout decisions can cause signal loss, noise, unstable power delivery, or electromagnetic compatibility problems.
Mechanical Characteristics
A PCB must fit the product enclosure, support connectors, and tolerate handling during assembly and use. Board thickness, panel design, mounting holes, edge clearance, slots, and cutouts should be reviewed early.
Mechanical stress is especially important near connectors, large components, or areas that may bend during installation. If a board is too thin, poorly supported, or incorrectly panelized, failures can appear during assembly or after shipment.
Thermal Characteristics
Electronic components generate heat, and the PCB often helps spread or transfer that heat. Copper planes, thermal vias, component placement, solder pad design, and board material can all influence temperature rise.
Thermal review is important for power devices, LEDs, motor control boards, automotive electronics, and compact products with limited airflow. A board that passes electrical tests can still fail if heat is not handled correctly.
Manufacturing Characteristics
A practical PCB design must match the manufacturer's process capability. Minimum trace width, minimum spacing, hole size, annular ring, copper balance, solder mask clearance, and surface finish should all be checked before release.
The goal is not simply to make the design possible. The goal is to make it repeatable. Designs that push process limits without a clear reason may increase cost, lead time, and defect risk.
Reliability Characteristics
Reliability depends on material selection, fabrication quality, assembly process, operating environment, and design margin. Moisture, temperature cycling, vibration, current load, chemical exposure, and contamination can all affect long-term performance.
For boards used in demanding environments, engineers should review creepage, clearance, coating, surface finish, via reliability, copper thickness, and inspection requirements.
Practical Takeaway
PCB board characteristics should be reviewed as a combined system. Electrical, mechanical, thermal, manufacturing, and reliability decisions are connected. A stronger PCB design starts with clear requirements and continues through layout review, fabrication review, assembly review, and testing. These characteristics also influence printed wiring board classification and defect risks such as PCB hole wall voids.
