PCB design quality can decide whether an electronic product works reliably after fabrication. A schematic may be correct, and the components may be suitable, but poor placement, routing, return paths, via use, or power layout can still create failures. This article explains why PCB layout decisions must be reviewed as engineering decisions, not only as drawing work.
Routing Is More Than Connecting Pins
Early PCB layout tools could connect nets automatically, but electrical success depends on more than connectivity. Signal paths, loop area, via transitions, trace geometry, impedance changes, and reference planes can all affect performance. A board can pass a basic net check and still fail when high-speed or noise-sensitive signals are involved.
Engineers should identify critical nets before routing begins. Clock lines, high-speed buses, switching power loops, analog inputs, RF paths, and reset lines often need stricter control than slow digital signals. If these nets are treated like ordinary connections, the finished board may require redesign.
Placement Drives Electrical Performance

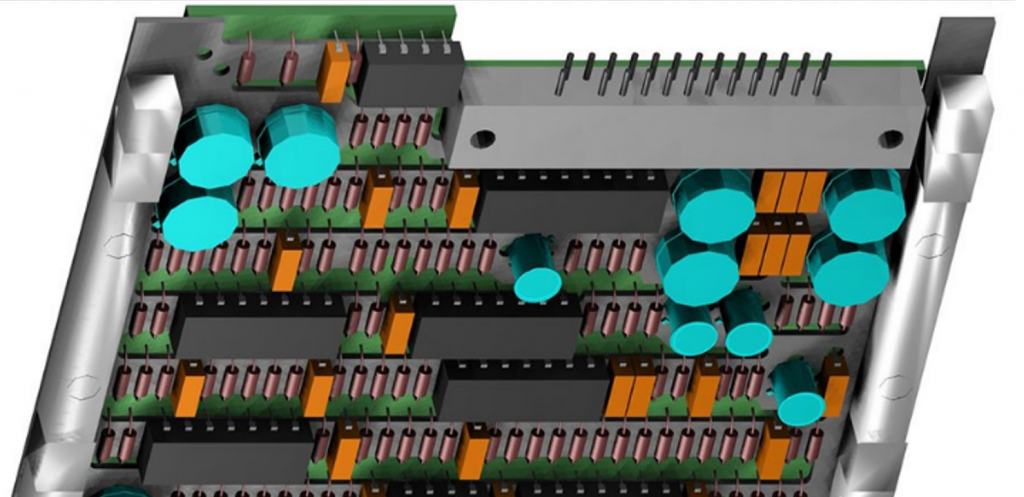

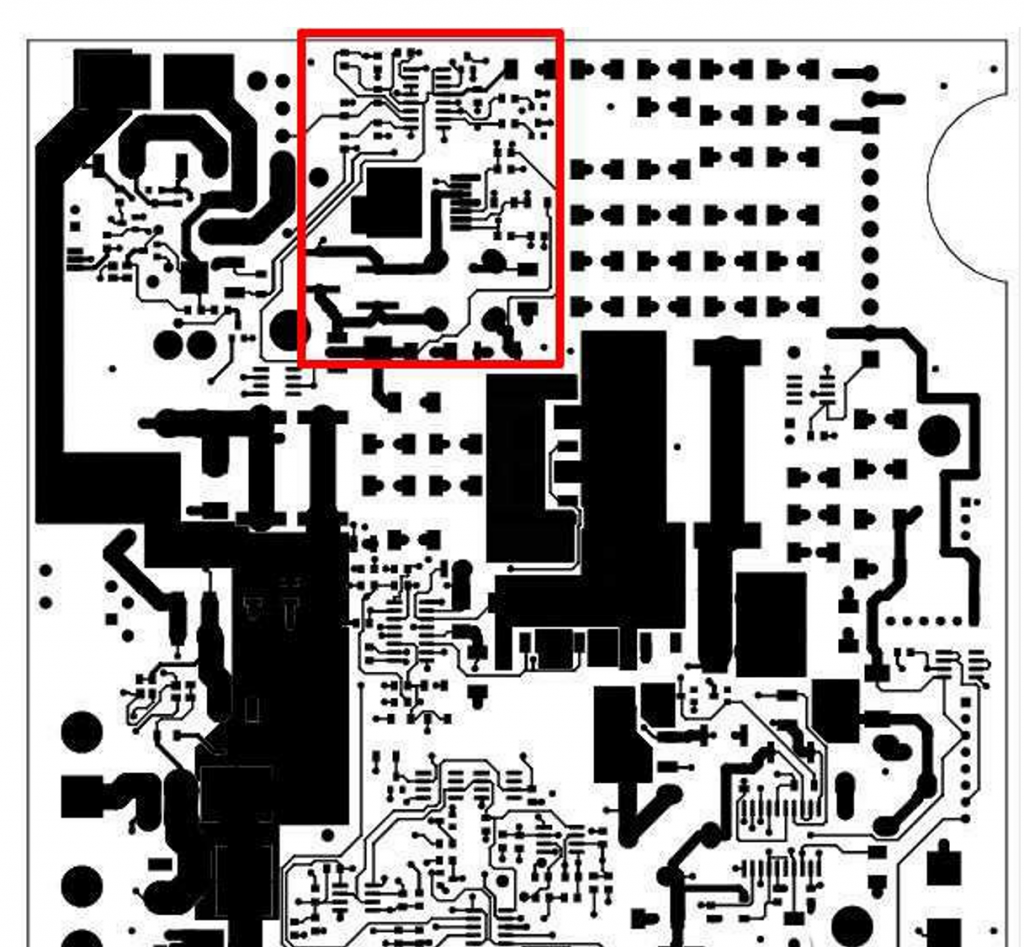

Component placement often determines whether routing can be clean. Decoupling capacitors need short paths to the relevant power pins and ground return. Oscillators should be close to the device they drive. Power conversion components should be placed to minimize hot loops. Connectors, sensors, and shielding areas should be reviewed together with the mechanical structure.
The original article describes cases where poor placement or routing created board-level problems. The practical lesson is clear: mechanical convenience should not override electrical constraints. Mechanical, electrical, and manufacturing teams should review the placement before releasing the board.
Signal and Power Integrity Need Early Review
As edge rates rise, the PCB becomes part of the circuit. Return paths, reference plane continuity, trace length, impedance, crosstalk, and via stubs can influence signal quality. Power integrity also matters because unstable supply paths can cause resets, noise, or intermittent operation.
These issues should be addressed before fabrication. Waiting until a prototype fails can be expensive because the failure may require changes to stackup, placement, routing, or component selection. A design review should confirm whether controlled impedance, plane structure, decoupling, and current paths match the product requirements.
DFM Connects Design to Manufacturing
A PCB layout must also be manufacturable. Trace width, spacing, annular ring, solder mask openings, via structures, copper balance, panelization, and test access all affect production. A design that looks acceptable in CAD may still be risky if it pushes the supplier's process limits without review.
Before release, engineers should share fabrication notes and ask the PCB supplier to review stackup, material, copper weight, surface finish, solder mask, and any special requirements. For assembled boards, the review should also include component orientation, pad design, polarity markings, and inspection access.
What to Check Before Sending Files
Before sending files for fabrication, check the schematic-to-layout match, critical net routing, return paths, power loops, component placement, via use, clearance, drill data, stackup notes, impedance requirements, and assembly outputs. The goal is to catch design risks while they are still easy to fix.
A strong PCB design process does not depend on one final inspection. It uses repeated review: schematic review, placement review, routing review, DFM review, and prototype test planning. That discipline is what turns a circuit idea into a reliable product.
