4-Layer Multilayer Flexible PCB with FR4 Stiffener

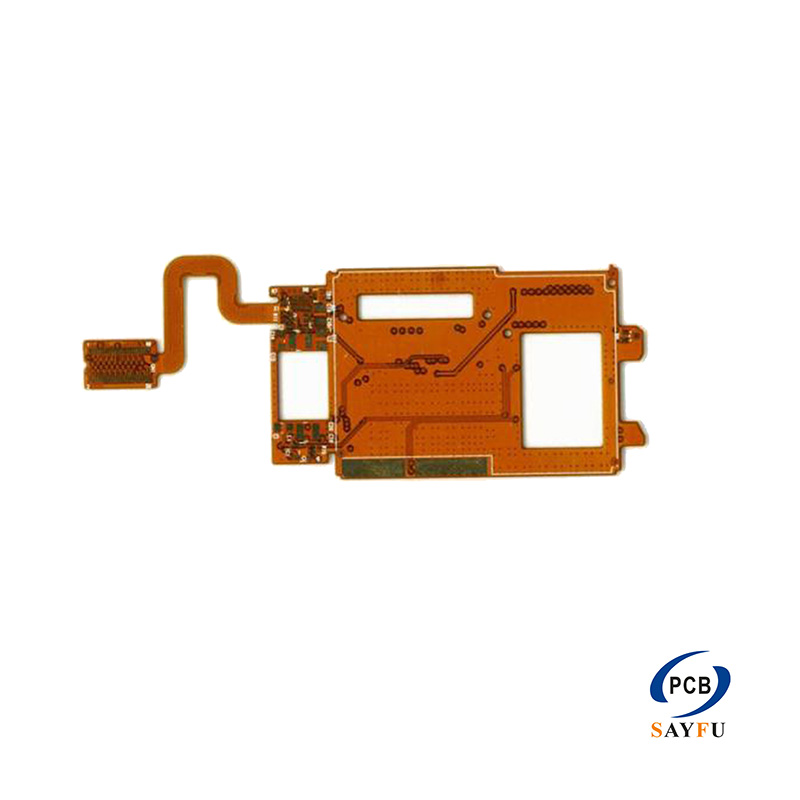

This 4-layer flexible PCB combines a 0.1 mm flex section with a 0.4 mm FR4 stiffener. The finished construction is 0.5 mm thick, with 1 oz copper on both sides of the flexible circuit and immersion gold on the exposed pads. It is intended for compact products that need more routing than a single-layer FPC can accommodate while retaining a defined flexible connection.

Four conductor layers give the designer more freedom to route signals and connections through a narrow assembly. The FR4 stiffener adds a supported area to the construction, but its position and size need to be shown in the mechanical information. The drawing should make clear where the circuit remains flexible and where the stiffened section is required.

Product Overview

A multilayer FPC is useful when a product needs several connections in limited space and a one- or two-layer circuit would force extra crossovers, a larger outline, or a separate cable assembly. The 0.1 mm flexible section keeps the circuit slim along its routing path. The stiffened part provides a different mechanical condition, so the final layout needs to account for both areas rather than treating the whole board as a uniform flex strip.

This structure can be considered for display connections, compact controls, camera modules, portable equipment, and other assemblies that require a dense flexible interconnect. The right choice depends on the available space, the route between assemblies, and the connection method at each end. Related circuit structures are available through the FPC PCB product category.

Flexible and Stiffened Areas

The flex section and the stiffened section need separate mechanical definitions. Keep the intended bend path in the flex area, and identify the extent of the FR4 stiffener in the outline drawing. If the board mates with a connector or sits beneath a mounted component, include the connector drawing or assembly drawing with the RFQ so the supported area can be matched to the actual installation.

Copper routing also needs to follow the mechanical layout. Avoid putting unnecessary pads, abrupt copper corners, or route changes in a section that must bend. At the connection end, show the coverlay opening, pad arrangement, and any local support requirement. This avoids a situation where the electrical layout is complete but the connection area has not been defined for the installed product.

Surface Finish and Assembly Fit

Immersion gold is specified for the exposed pads on this product. The pad size and opening around the pad need to suit the selected connector or soldered component. Where the FPC will be supplied with connectors, mounted components, or additional inspection, include that scope with the quotation files. The turnkey PCB assembly page provides related assembly information.

The 1 oz copper construction is part of the board definition, but the required conductor width, spacing, and current path still need to be taken from the actual design files. Share the Gerber data and stack-up drawing early when the routing is dense or when the flexible circuit connects to a constrained mechanical interface.

What to Confirm Before Production

Please provide Gerber files, drill files, an FPC stack-up drawing, and mechanical notes. Include the finished outline, FR4 stiffener dimensions and location, bend path, coverlay details, immersion-gold pad locations, connector drawings, requested quantity, and application. With those details, the flexible routing and supported areas can be reviewed together before fabrication.
