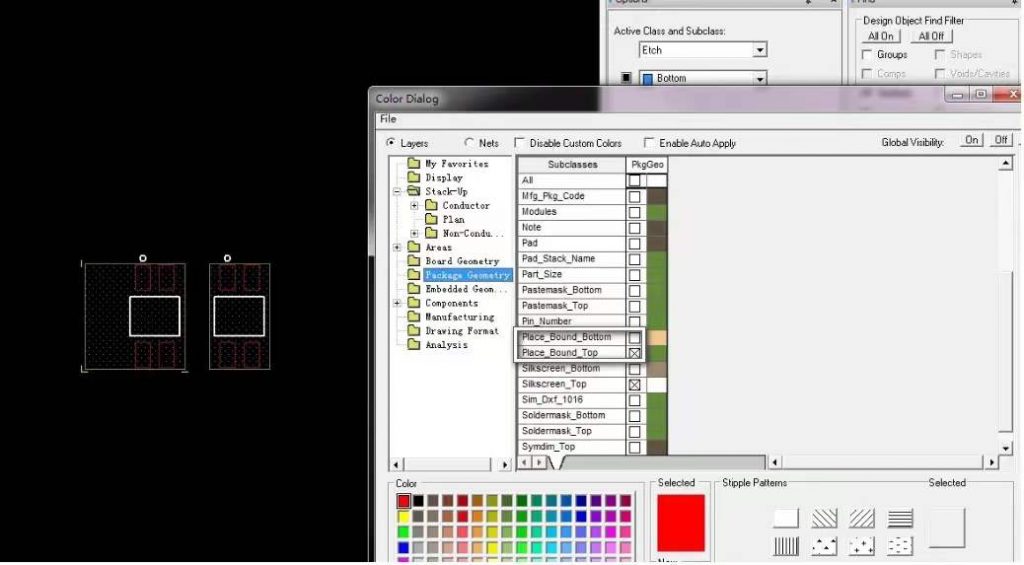

PCB layout is the stage where an electrical design becomes a manufacturable board. A schematic can be correct, but the product may still fail if placement, routing, grounding, power loops, spacing, or assembly access are poorly handled. Good layout knowledge helps engineers reduce electrical noise, manufacturing risk, and prototype rework.
Place Components Before Routing
Component placement should be reviewed before detailed routing begins. Connectors, power devices, oscillators, ICs, decoupling capacitors, sensors, and mechanical constraints all influence the final layout. If placement is weak, routing usually becomes complicated and unreliable.
Decoupling capacitors should be close to the pins they support. Power conversion parts should keep high-current loops short. Sensitive analog or clock circuits should be separated from noisy switching areas. Mechanical requirements should be checked without sacrificing electrical performance.
Keep Signal Paths and Return Paths Together
Every signal needs a return path. If a trace crosses a reference-plane split, changes layers without a return via, or forms a large loop, the board may create noise, ringing, or EMI problems. High-speed and fast-edge signals are especially sensitive.
Layout review should identify clock lines, reset lines, differential pairs, RF paths, power feedback traces, and other critical nets. These routes need more control than ordinary low-speed connections.
Control Power and Ground Layout
Power layout affects stability, noise, and thermal behavior. Wide current paths, suitable copper areas, short switching loops, and clean grounding help the board perform consistently. Poor power layout can create voltage drop, heat concentration, or interference with sensitive circuits.
Ground should not be treated as a random fill. It should support return current, shielding, and signal reference needs. When the board has mixed analog, digital, power, or RF areas, the grounding plan should be reviewed as part of the system design.
Check Spacing, Pads, and Manufacturing Limits
PCB layout also needs to match manufacturing capability. Trace width, spacing, annular ring, drill size, solder mask opening, silkscreen clearance, and copper balance should be checked before files are sent out. Designs that push the process window need supplier review.
Assembly limits matter too. Pads should match component packages, polarity should be clear, test points should be accessible, and tall or heavy components should not create handling problems.
Run a Final Layout Release Review
Before fabrication, engineers should check schematic-to-layout consistency, DRC results, stackup notes, impedance requirements, drill files, board outline, polarity marks, test points, and assembly outputs. The goal is to find layout problems before they become prototype failures.
A reliable PCB layout is not just neat routing. It is a controlled design that supports electrical behavior, manufacturing, assembly, inspection, and future troubleshooting. For a broader review framework, compare these layout checks with PCB design principles and the full PCB design process.
