PCB technology development is changing how engineers choose packages, define stackups, manage heat, plan assembly, and verify reliability. The most relevant developments are those that alter a specific product decision or expose a new manufacturing risk.
For an actual project, engineers need to determine how each technology change affects routing space, signal quality, thermal performance, fabrication complexity, inspection access, production yield, cost, and field life. This article separates established engineering principles from changes that are becoming more common in current product development.
Packaging Density Is Bringing Assembly Decisions Into Early Design
Smaller packages and denser layouts continue to spread across compact electronics, communication modules, industrial controls, automotive systems, and connected devices. CSP, BGA, QFN, TSOP, and other package types still serve different requirements. Engineers choose among them based on I/O count, available board area, thermal behavior, component availability, inspection method, rework difficulty, and total assembly cost.
Chip-scale packaging can shorten interconnect paths and reduce package size. It also places tighter demands on pad geometry, solder mask registration, escape routing, via placement, board flatness, and solder-joint inspection.

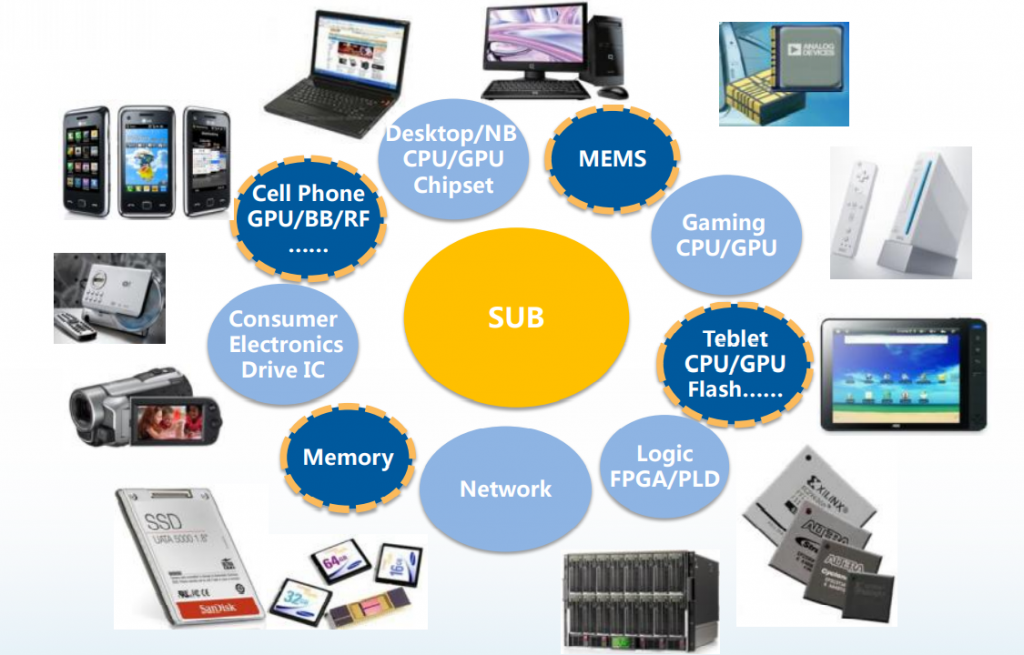

CSP packaging must also be distinguished from an IC substrate or a conventional PCB substrate. The silicon die, package substrate, solder connection, and main PCB perform different electrical and mechanical functions. Confusing these layers can lead to incorrect assumptions about routing capability, material requirements, and supplier responsibility. Projects involving package-level interconnects may require a separate review of the CSP IC substrate PCB.
As package pitch becomes finer, PCB and assembly decisions become harder to separate. A package selected only for its size may later require microvias, tighter fabrication tolerances, X-ray inspection, or a more controlled assembly process. Package selection should therefore include an early review with the PCB fabricator and assembly provider.
High-Speed Products Are Narrowing Material and Stackup Margins
Controlled impedance, continuous return paths, reference-plane planning, and power-distribution design are established engineering principles. The current development is their wider relevance. Products that previously used ordinary multilayer construction may now include faster interfaces, sharper signal transitions, RF sections, compact power circuits, or mixed-signal devices.
Under these conditions, the PCB can no longer be treated as a passive platform that only connects components. Laminate properties, dielectric thickness, copper profile, layer order, and via transitions can influence impedance, insertion loss, crosstalk, EMI, and power integrity.
Material selection should consider how the laminate behaves across the product’s operating conditions. Dielectric properties affect signal propagation and loss. Copper roughness can increase conductor loss at higher frequencies. Dimensional stability affects registration during multilayer fabrication, while moisture absorption and thermal behavior can influence long-term reliability and assembly performance.
A general overview of available material families is provided in PCB substrate materials, although the final selection should rely on current supplier data and the electrical requirements of the project.
Stackup planning also needs to begin before routing is fixed. Changing a dielectric thickness late in development may alter trace geometry for controlled impedance. Replacing a laminate may change loss performance, resin behavior, fabrication availability, or lead time. Moving a reference plane can disrupt return-current paths and increase coupling between circuits.
For high-speed multilayer PCB design, the laminate, stackup, impedance requirements, routing rules, and fabrication capability should be reviewed as one connected design system.
HDI Is Moving Into Selective Routine Use
HDI has become more relevant as package density increases and available routing area decreases. Blind vias, buried vias, microvias, and sequential lamination allow designers to route signals without consuming the same board area as conventional through-hole vias.
Its value depends on the routing problem. A board with fine-pitch packages may need microvias under component pads or between dense escape channels. A compact module may use blind vias to preserve routing space on internal layers. In contrast, a larger board with moderate routing density may achieve the same electrical function with a simpler conventional multilayer structure.
HDI changes more than the via size. Sequential lamination adds manufacturing stages. Microvia structures require closer review of aspect ratio, copper plating, stacked or staggered construction, and the number of lamination cycles. These choices affect fabrication cost, lead time, supplier availability, and reliability qualification.
Test access and repair strategy may also become more difficult. Routing density can reduce space for test points, while buried interconnections are less accessible for failure analysis. Inspection methods and acceptance criteria should be considered before the layout is released.
The preferred approach is to apply HDI only where package escape, product dimensions, or signal routing requires it. Other areas of the board can often retain simpler structures. The available via options and their manufacturing consequences are discussed further in HDI blind and buried via PCB.
Thermal and Reliability Reviews Are Starting Earlier
Thermal design, material compatibility, and fatigue analysis are established parts of electronic engineering. Their timing is changing. Higher component density, compact enclosures, increased current, and limited airflow make it harder to postpone thermal evaluation until the prototype stage.
Heat affects both immediate performance and long-term reliability. High local temperature can reduce component life or change electrical behavior. Repeated thermal cycling can strain solder joints, plated vias, copper features, and laminate interfaces because the materials expand and contract at different rates.
The design team should first identify the main heat sources and the intended heat path. Copper planes can spread heat away from a component, while thermal vias can transfer it between layers or toward an external heat sink. Their effectiveness depends on via placement, copper connection, board construction, interface materials, airflow, and enclosure design.
Copper distribution also affects fabrication. Large copper imbalances can contribute to uneven resin flow, board distortion, or local stress during lamination and assembly. A thermal solution that relies on heavy copper or dense via arrays should therefore be reviewed for both heat transfer and manufacturability.
Operating conditions matter as much as peak temperature. A board that experiences frequent heating and cooling may face different reliability risks from one that remains at a stable elevated temperature. The expected duty cycle, enclosure environment, assembly profile, and product life should guide the review.
Surface Finish and Assembly Choices Continue to Control Production Risk
Surface-finish selection is an established engineering decision, but denser assemblies and tighter production margins increase its importance. ENIG, hard gold, HASL, OSP, immersion silver, and other finishes differ in surface flatness, solderability, storage behavior, contact performance, process sensitivity, and cost.
Fine-pitch components generally benefit from a flat soldering surface because uneven pad height can affect paste deposition and component seating. Edge connectors or repeated-contact areas may require a finish designed for mechanical wear rather than soldering. Products with long storage periods need a finish and packaging method that preserve solderability under the expected storage conditions.
The finish must also be compatible with the assembly process. Stencil thickness, aperture design, solder-paste selection, component termination, reflow profile, and board finish together affect solder-joint formation. A suitable finish cannot compensate for poor paste transfer or an unsuitable thermal profile.
Dense packages also change inspection planning. Joints beneath BGA, bottom-terminated components, and similar packages cannot be evaluated fully through ordinary visual inspection. X-ray inspection may be required to check voiding, bridging, missing solder, or alignment. Rework limits should be reviewed as well because repeated heating can damage pads, laminate, components, or nearby joints.
Fabrication capability alone does not establish production readiness. The board must also support a stable assembly process, practical inspection, and an acceptable repair strategy.
How to Evaluate a PCB Technology Direction
Current PCB development is creating closer connections between component selection, electrical design, fabrication, assembly, inspection, and reliability planning.
Denser packages require earlier decisions about escape routing, via structures, pad design, inspection access, and rework. Faster interfaces make laminate properties and stackup geometry more important in products that previously used standard construction. HDI is becoming a practical option for selected routing problems, while thermal and reliability reviews are moving closer to the beginning of the design process.
Before selecting a PCB technology, the engineering team should confirm:
- Which package types and pitches will be used, and how they will be routed, assembled, inspected, and repaired.
- Which signal, impedance, RF, power-integrity, or isolation requirements must be supported by the stackup.
- Whether the electrical requirements justify a low-loss laminate or whether a well-defined conventional material system is sufficient.
- Whether blind vias, buried vias, or microvias solve a specific routing constraint.
- Where heat is generated, how it moves through the board, and how it leaves the enclosure.
- Which manufacturing assumptions require supplier data, DFM review, test results, or product-specific qualification.
PCB technology development increasingly requires these decisions to be made together. Early coordination helps prevent late material substitutions, unrouteable packages, unsuitable via structures, inaccessible solder joints, ineffective thermal paths, and avoidable reliability failures.
