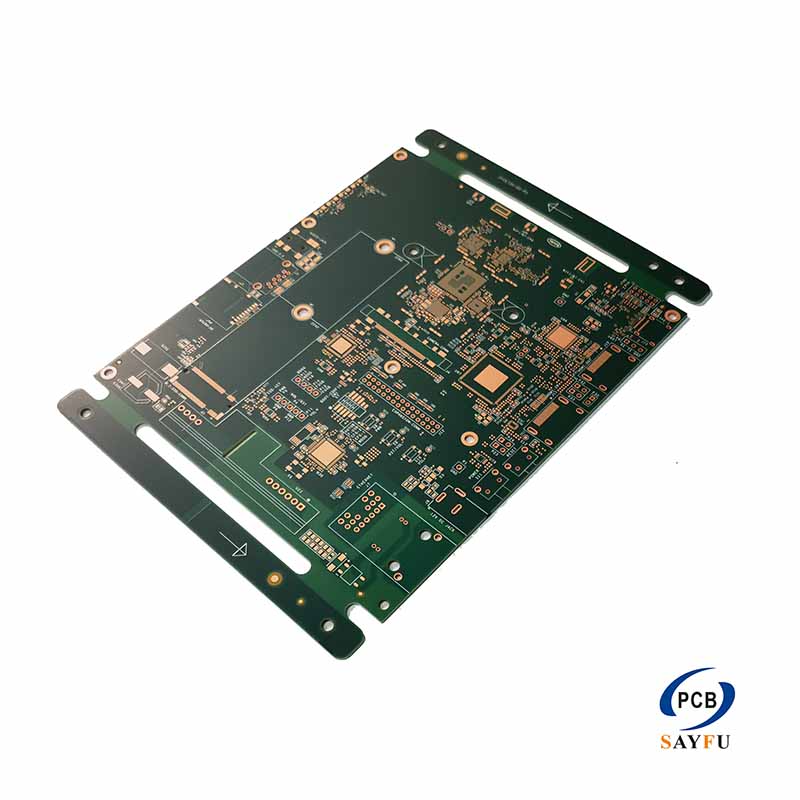

Any-layer HDI is useful when a design needs routing freedom across many layers with dense component placement. It should be selected because the package and routing require it, not because it sounds more advanced than a simpler multilayer board.
When any-layer HDI is worth considering
Fine-pitch devices, limited board area, and dense signal breakout can make ordinary vias inefficient. Any-layer HDI may help, but it also increases process complexity and review requirements.
For HDI demand in 5G products, see HDI circuit boards for 5G.
Microvia reliability needs review
The via structure should define whether microvias are stacked, staggered, filled, or connected through multiple lamination cycles. These choices affect reliability, inspection, and cost.
Basic via terminology is explained in PCB via types.
Stackup and signal planning
Controlled impedance, return paths, material choice, copper distribution, and power integrity should be reviewed before release. Any-layer routing freedom does not remove the need for a stable stackup.
For high-speed design context, review high-speed circuit board design characteristics.
Questions for the manufacturer
Ask about lamination sequence, microvia inspection, plating control, filled-via assumptions, minimum design rules for the quoted build, and whether reliability testing is needed for the application.
