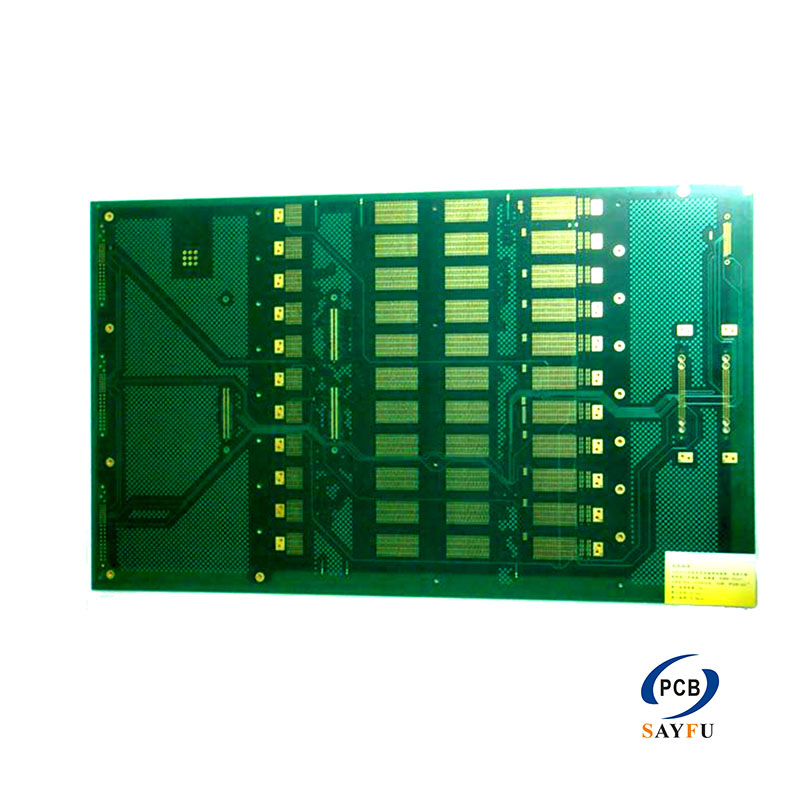

HDI circuit boards are often considered for 5G-related products because the layout may need more routing density under fine-pitch components. The practical decision is whether HDI solves a real space, via, or signal-routing problem in the design.
Why 5G products often lead to HDI review
Smartphones, wearable devices, communication modules, and compact electronics can place more components into a smaller board area. When ordinary through-hole vias block too much routing space, blind vias, buried vias, or microvias may become useful.
The related article on AI server HDI PCB design shows a different high-density use case where routing and reliability checks also matter.
Via structure should follow the package
HDI should be tied to component pitch, escape routing, signal speed, and layer count. A design does not need HDI simply because it is associated with 5G. If routing can be solved with a simpler multilayer PCB, that may be the lower-risk option.
For via terminology and design implications, review PCB via types.
Signal and manufacturing checks
High-speed or RF sections may need controlled impedance, short return paths, and material review. These choices should be confirmed before the stackup is frozen because later changes can affect trace geometry, lamination, and cost.
When the board also has strict high-speed requirements, high-speed circuit board design characteristics provide useful supporting context.
Supplier questions before quotation
Ask the manufacturer which via structures are suitable, how many lamination cycles are expected, how the microvias will be inspected, and whether the proposed stackup matches the product reliability target.
The most useful HDI specification is one that connects routing need, process capability, and inspection method.
