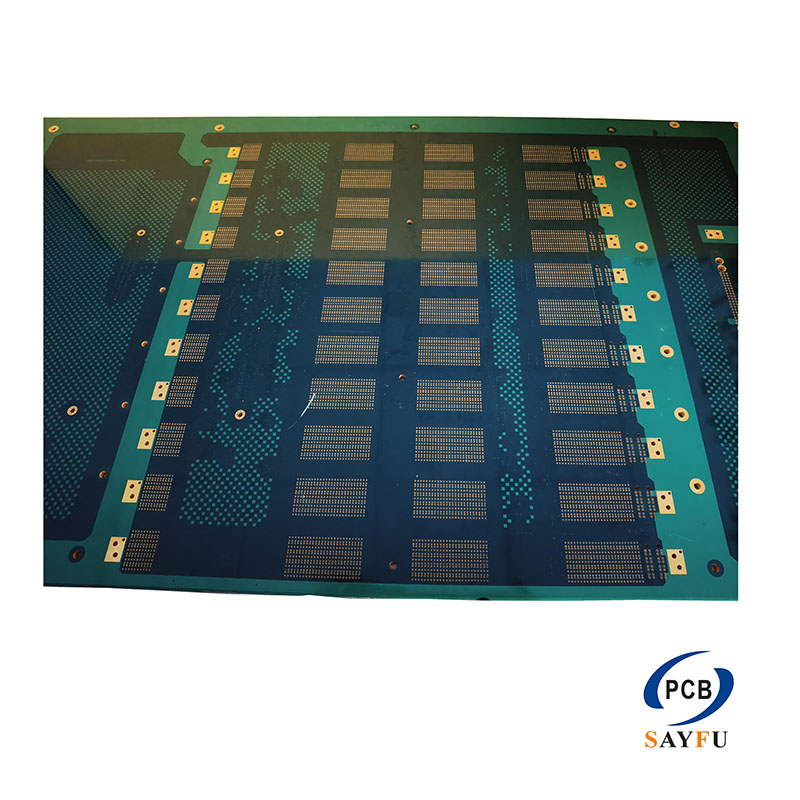

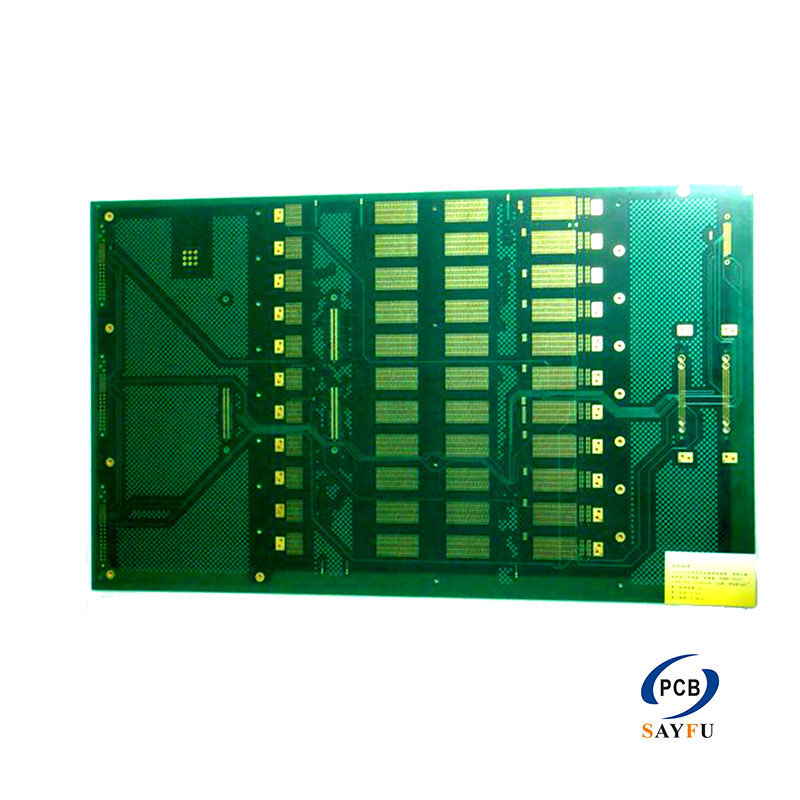

AI server HDI PCB requirements come from dense packages, high-speed channels, power delivery, and thermal load. HDI can help with breakout and routing, but the final design still needs a controlled stackup and manufacturable via structure.
Why AI server boards push HDI decisions
Dense processors, memory devices, and high-speed interfaces can require more routing space than a simple through-hole via structure can provide. HDI may allow finer escape routing and shorter connections under fine-pitch packages.
For a 5G-oriented HDI discussion, see HDI circuit boards for 5G.
Microvia structure should be justified
Microvias, stacked vias, and buried structures add process complexity. They should be selected because the package and routing demand them, not because the project is described as advanced.
The page on PCB via types gives useful terminology for this decision.
Stackup and material checks
High-speed AI server boards may require controlled impedance, low-loss material review, return path planning, and thermal management. These topics should be confirmed before layout rules are finalized.
When layer count becomes a major constraint, review high-layer PCB stackup checks.
Supplier review before release
Ask the manufacturer to review lamination cycles, microvia inspection, impedance tolerance assumptions, material availability, test method, and reliability requirements. A quotation without these assumptions may hide the real risk.
