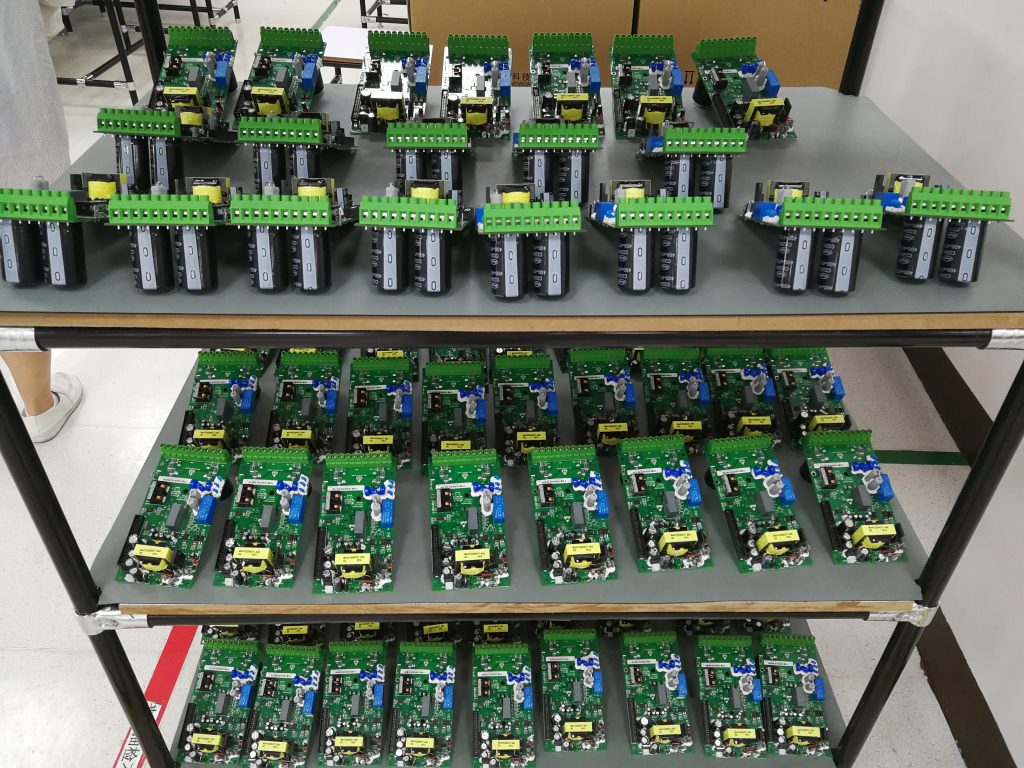

Patch components, usually surface-mount components, are mounted directly onto PCB pads instead of passing leads through drilled holes. They can reduce board area, support automated assembly, and improve routing options, but they also make footprint accuracy and soldering control more important.
Patch Components Save Space on Dense Boards
Surface-mount packages usually occupy less area than through-hole parts with comparable functions. This helps when the product enclosure is small or when the design needs more functions on the same board size.
Space saving is only useful when the PCB can still be routed, inspected, and assembled. Dense placement should be reviewed together with PCB layout knowledge so pad geometry, spacing, and routing access remain realistic.
Automated Assembly Can Improve Repeatability
SMT components are suitable for automated placement and reflow soldering. This can improve consistency when the stencil, paste, placement, reflow profile, and inspection plan are controlled. The advantage comes from process discipline, not from the package style alone.
The assembly step depends on earlier fabrication choices. Pad finish, solder mask opening, and board flatness are part of the wider PCB design and production process.
Smaller Packages Increase Inspection Demands
Patch components can make inspection harder when solder joints are small or hidden under the package. Fine-pitch ICs, BGAs, and bottom-terminated components may need SPI, AOI, X-ray, or functional test depending on the design and reliability target.
This is why surface-mount decisions should be reviewed before layout release. A package that saves space can create rework or inspection limits if the board has no room for access, thermal relief, or test points.
Through-Hole Parts Still Have a Place
Patch components do not replace every through-hole part. Connectors, high-mechanical-stress parts, some power components, and field-serviceable parts may still need through-hole or hybrid assembly. The choice depends on mechanical load, current, heat, service requirements, and assembly method.
For products with reliability expectations, the use environment matters. PCB use in healthcare and medical devices shows how inspection discipline and stable operation can influence board and assembly decisions.
What to Confirm Before Choosing Patch Components
Confirm package availability, land pattern, stencil recommendation, solder joint visibility, thermal path, test access, and supplier assembly capability. If the product uses fine-pitch parts or dense placement, ask for DFM feedback before releasing the PCB.
Patch components are useful because they support compact and repeatable assembly. They work best when the PCB layout, solder paste process, and inspection method are planned together.
