Flexible printed circuits are used in vehicles when electronics need a thin, light, or shaped interconnect. They can replace part of a wire harness, connect sensors, fit into compact modules, or route through spaces where a rigid board would be awkward. The benefit is real, but FPC design still needs disciplined mechanical and electrical review.
Why Automotive Electronics Use FPCs
Automotive electronics continue to add sensors, displays, battery systems, lighting, cameras, control modules, and driver-assistance functions. These systems often need compact routing and stable connections in tight spaces. Flexible circuits can help reduce bulk and simplify assembly when the bend area and connector transitions are designed correctly.
The choice should be based on product geometry and reliability needs, not only on the desire to make the design smaller.
FPCs Are Mechanical Parts as Well as Circuits

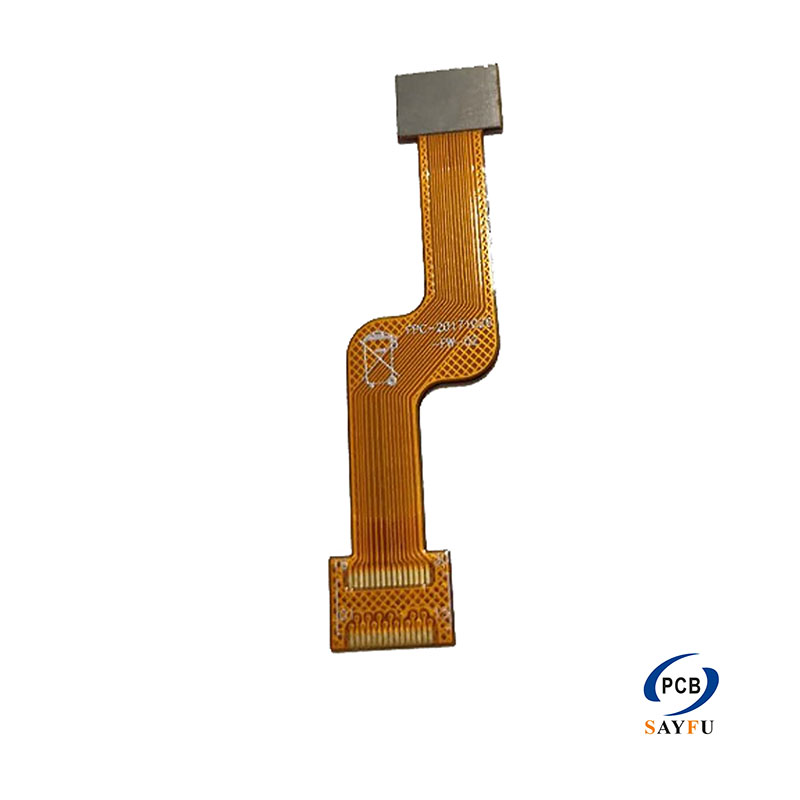

A flexible circuit bends, moves, or folds because its material stack is designed for that use. Copper type, coverlay, adhesive system, stiffeners, and bend radius all affect long-term reliability. A trace that is electrically correct can still fail if it is placed in a high-stress bend area.
This is different from ordinary rigid laminate selection. For rigid-board material context, see PCB substrate materials and raw materials; for FPCs, mechanical motion must be reviewed together with the circuit.
Connector and Stiffener Areas Need Attention
Many FPC failures happen near transitions: connector fingers, soldered joints, stiffener edges, or places where a flex tail exits an enclosure. These areas concentrate stress. The layout should avoid sharp trace changes in bend zones and should place reinforcement where repeated handling or vibration is expected.
Automotive designs may also require process documentation and testing discipline because field repair can be difficult after the product is assembled.
Electrical Requirements Still Apply
FPCs can carry power, sensor signals, display connections, or control lines. Each use case has different requirements for copper thickness, shielding, impedance, and connector quality. If the flexible circuit carries faster digital signals, the stackup and return path need review just like a rigid high-speed board.
The broader trend toward denser electronics and earlier reliability review is discussed in PCB technology development trends. FPC adoption fits that direction when it solves a real packaging or routing problem.
Medical and Wearable Products Share Similar Constraints
Automotive FPCs are not the same as medical wearable circuits, but both can involve compact routing, movement, and reliability concerns. The medical PCB discussion in PCBs in healthcare and medical devices is useful for understanding how environment and inspection expectations change board decisions.
Practical Takeaway
Flexible circuits can reduce space and assembly complexity in automotive electronics, but they are not a universal replacement for rigid boards or wire harnesses. Review the bend area, connector transition, material stack, operating environment, and test plan before committing to FPC construction.
