PCB substrate materials form the insulating structure that supports copper circuitry. They influence mechanical strength, dielectric behavior, heat resistance, moisture response, and manufacturing cost. Choosing a substrate is therefore an engineering decision, not only a purchasing line item.
What Counts as PCB Substrate Material
Most rigid PCBs use copper-clad laminate made from resin, reinforcement, and copper foil. Common reinforcement includes paper or glass fiber cloth, while resin systems may include phenolic, epoxy, or higher-performance formulations. The finished laminate gives the board its base thickness, stiffness, insulation, and much of its thermal behavior.

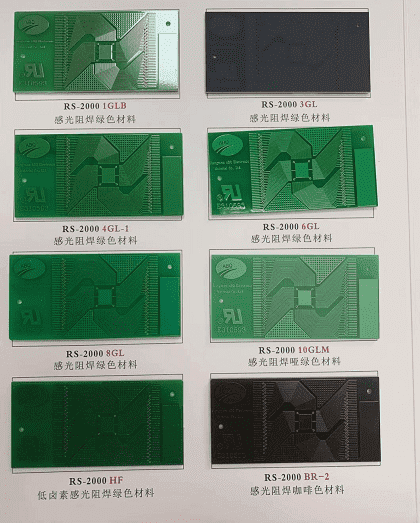

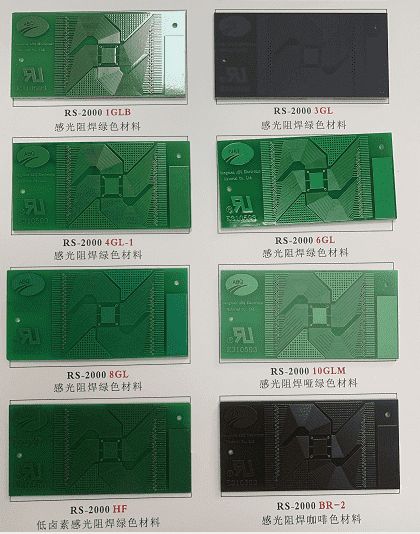

Solder mask is a different layer. It protects copper and controls soldering, but it does not define the laminate structure. For that distinction, see why most PCB solder masks are green.
FR-4 Is Common, But Not One Single Material
FR-4 is widely used, but it is not a single universal material with identical behavior from every supplier. Glass transition temperature, dielectric behavior, loss, moisture absorption, and thickness tolerance can vary by grade. A low-speed control board and a dense high-speed product may both say FR-4 while needing different laminate details.
The safe approach is to define what the board must do: operating temperature, signal speed, voltage, thickness, mechanical stress, and assembly profile. The laminate can then be selected against those conditions.
High-Speed and RF Designs Need Loss Review
When signal frequency or edge rate increases, dielectric loss and impedance control become more important. Trace geometry still matters, but the laminate's dielectric properties affect insertion loss and timing. Generic material assumptions can lead to a design that looks correct in CAD but behaves differently after fabrication.
This is why material review is part of broader PCB technology development trends. Higher packaging density and faster interfaces make early material decisions more visible in final product behavior.
Thermal and Mechanical Conditions Matter
Substrate selection also affects how the board handles heat and mechanical stress. Power devices, LED products, automotive modules, and medical equipment may need closer review of heat paths, copper distribution, coating, or bend and vibration exposure. A material that is acceptable in a simple indoor product may be weak in a harsher environment.
Medical electronics are a useful example because reliability expectations can be high even when the board is physically small. The article on PCBs in healthcare and medical devices explains how use environment and inspection expectations influence PCB decisions.
Flexible Circuits Use Different Base Materials
Flexible PCBs typically use materials and constructions chosen for bending and thin profiles. They should not be treated as a thinner version of rigid FR-4. Bend area, adhesive system, copper type, stiffeners, and connector transitions all need review.
Automotive flexible-circuit applications show how mechanical routing and electrical function meet in the same design decision. See automotive flexible circuit board applications for that context.
Practical Takeaway
Do not choose PCB substrate material by name alone. Define the electrical, thermal, mechanical, assembly, and cost conditions first, then confirm the laminate options with the PCB supplier. The right material is the one that supports the product conditions without adding unnecessary process risk.
