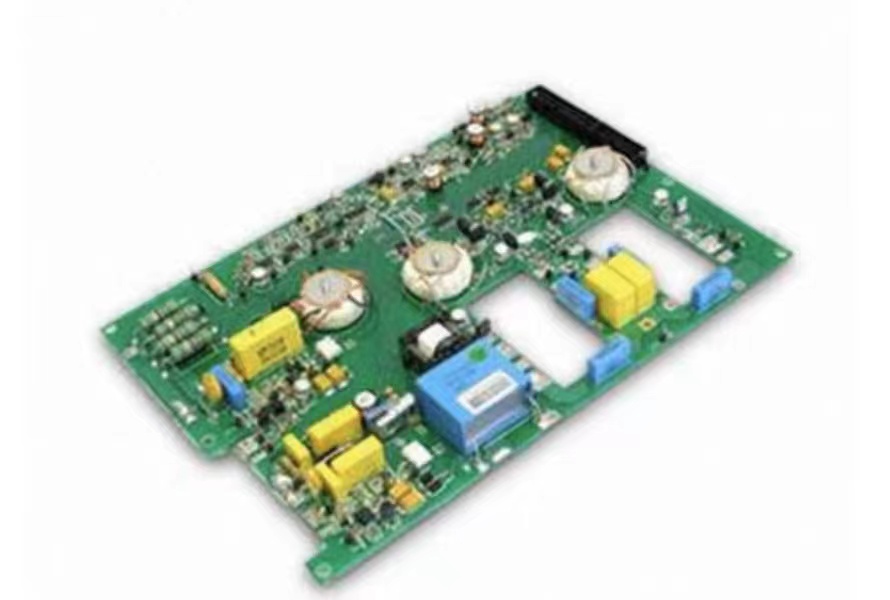

5G products create stronger requirements for PCB design and manufacturing because signal speed, frequency, density, thermal behavior, and reliability are harder to control. A 5G-related PCB may need low-loss materials, controlled impedance, stable stackup, HDI routing, RF isolation, and tighter process review. The useful question is not whether 5G is a market opportunity. It is whether the PCB structure matches the actual electrical, mechanical, thermal, and manufacturing requirements of the product.
5G Changes the PCB Requirement, Not Just the Application Name
A board used in a 5G product is not automatically a special PCB. The design requirements depend on the circuit function. A power module, antenna board, base station board, router board, optical module, or mobile device motherboard can each have different material, stackup, and assembly needs.
The first review should identify which parts of the design are high frequency, high speed, high density, high power, or thermally sensitive. These requirements should be separated because they create different PCB decisions. A board can have ordinary control circuits and critical RF paths on the same assembly. Treating the whole board as one generic 5G PCB can hide important process requirements.
For designs where material behavior affects signal performance, this guide on high-frequency and high-speed PCB material selection is a useful related reference.
Material and Stackup Control Are Central
High-frequency and high-speed circuits depend on predictable signal paths. Laminate selection, dielectric thickness, copper roughness, plane arrangement, and impedance calculation can affect loss, reflection, crosstalk, and EMI behavior. If the stackup changes after layout, the electrical assumptions can change too.
The PCB supplier should confirm whether the requested material is available, whether the stackup is manufacturable, and whether impedance coupons or additional testing are required. Designers should avoid choosing a special material only because the product is associated with 5G. The correct material should solve a real electrical or reliability problem.
Multilayer design is common in 5G-related products because reference planes, power distribution, and routing density need careful control. A related page on multilayer boards for high-speed circuit board design explains why stackup planning affects signal behavior.
HDI and Routing Density May Be Needed
Some 5G products use dense packages, compact modules, and limited board area. In those cases, HDI structures can help with package escape and routing. Blind vias, buried vias, microvias, and sequential lamination can create more routing options, but they also add manufacturing complexity.
HDI should be chosen for a routing or package need. It should not be added only because the product is associated with 5G. The design team should review via structure, layer span, copper filling if required, dielectric thickness, lamination sequence, and inspection method.
For a related application discussion, see this page on HDI circuit boards for 5G development. It supports the point that density and package structure drive HDI demand.
Thermal and Reliability Risks Need Manufacturing Review
5G equipment can combine high signal performance with meaningful power and thermal requirements. Heat can affect material behavior, solder joint reliability, dimensional stability, and component life. The PCB design should provide appropriate copper distribution, thermal paths, and assembly support for the product environment.
Reliability review should also consider plated hole quality, via stress, surface finish, solderability, and testing. If the board is used in communication infrastructure or other long-life equipment, process evidence matters more than broad marketing claims.
Thermal and electrical requirements can also compete with each other. Large copper areas may help heat spreading but change impedance, copper balance, or routing space. Dense vias may help current or heat movement but increase fabrication complexity. These tradeoffs should be reviewed before the layout becomes too fixed to adjust.
Assembly and Test Expectations Should Be Defined
5G-related PCB products can include dense BGAs, RF connectors, shield cans, high-current power areas, fine-pitch components, and thermal interfaces. These features affect assembly as much as fabrication. A board that is designed only for routing may still create problems during solder paste printing, placement, reflow, inspection, or rework.
The assembly team should understand which components are sensitive, which areas need shielding, which connectors require mechanical support, and which solder joints may be hidden from ordinary optical inspection. Thermal behavior should also be reviewed at assembly level. Heavy copper, dense components, large ground areas, and mixed package sizes can create uneven heating.
Test planning should be connected to the design stage. If the product needs RF validation, impedance measurement, electrical test, or system-level functional checks, the board should provide test access where possible. Waiting until production to think about test coverage can lead to fixture problems or incomplete inspection.
What Makes a 5G PCB Design More Reliable
A more reliable 5G PCB design starts with identifying the real critical areas. RF paths, high-speed interfaces, power distribution, thermal paths, dense package escape, and shielding points should not be treated as ordinary routing details. They define the stackup, material, layout rules, inspection needs, and assembly constraints.
The design should also separate fixed requirements from adjustable assumptions. Material choice, impedance targets, board thickness, via structure, copper distribution, and surface finish may all influence one another. If one of these items changes late, the product team may need to review signal behavior, manufacturability, thermal behavior, and assembly again.
Prototype builds are useful when the product combines dense routing, RF behavior, and fine-pitch assembly. The first build should be used to check whether the material, stackup, vias, soldering, and test access match the actual product requirement. Feedback from the first build can prevent the team from carrying a weak assumption into production.
The practical value of reviewing PCB products for 5G is that it keeps the design tied to measurable requirements. A strong design is not defined by the 5G label. It is defined by stable signal paths, controlled stackup, suitable materials, manufacturable HDI or multilayer structures, thermal control, and test access that supports the product's real function.
This also helps teams avoid overdesign. Not every circuit in a 5G product needs advanced material or HDI structure. The board should be divided by function so ordinary control areas, power areas, RF paths, and high-speed interfaces each receive the level of review they actually need.
