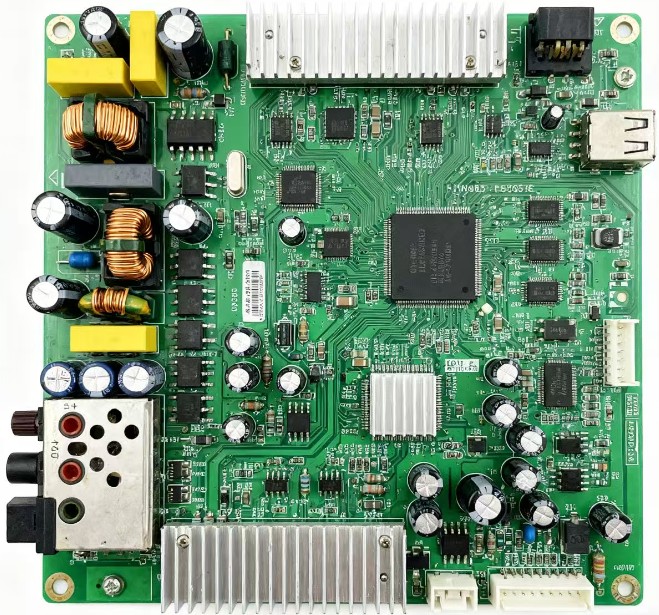

A power printed circuit board is designed to distribute, switch, or control higher electrical power than a signal-only PCB. It must manage current, voltage spacing, heat, copper loss, component stress, and mechanical reliability at the same time.
Power PCB Design Starts With Current and Heat
The first design question is how much current each path must carry and where the heat will go. A trace, copper plane, connector, via, or solder joint can become a hot spot if it is undersized or placed without a thermal path.
Power PCB design should identify the main current loops, switching nodes, heat-generating components, and return paths before routing begins. The layout should minimize avoidable resistance and reduce loop areas where switching noise is important.
Copper Structure Affects Loss and Temperature Rise
The original article notes that power boards often use thicker copper. Thicker copper can help carry current and spread heat, but it also affects etching, spacing, cost, and manufacturability. The correct copper weight should be selected from the actual current, allowable temperature rise, board thickness, and fabrication limits.
Power designs may also use large copper areas, thermal vias, or metal-core structures where heat must be moved away from power devices. Material context is available in PCB substrate materials and raw materials.
Layout Controls Electrical and Thermal Risk
Power PCB layout must consider clearance, creepage, return paths, copper balance, component placement, and connector direction. High-current paths should be short and wide where practical, while sensitive control signals should be kept away from noisy switching paths.
General PCB layout knowledge is relevant because layout decisions directly affect manufacturability, assembly, and electrical behavior.
Applications Need Different Power PCB Choices
Power supplies, motor drives, automotive control modules, battery systems, industrial equipment, and renewable-energy converters can all use power PCB structures. These applications do not all need the same board. Some require thermal performance, some require isolation spacing, and some require stable switching behavior.
The design team should define voltage, current, switching frequency, ambient temperature, cooling method, connector load, and test requirements before choosing the final structure.
Reliability Checks Before Production
A power PCB should be reviewed for copper width, via current sharing, solder joint stress, heat path, material selection, surface finish, and inspection access. If the board uses high current or high voltage, the documentation should clearly show spacing rules and any special safety requirement that applies to the product.
Power PCB quality comes from balancing electrical, thermal, and mechanical decisions. A board that only carries current on paper may still fail if heat, spacing, assembly, or inspection is not controlled in the real product.
