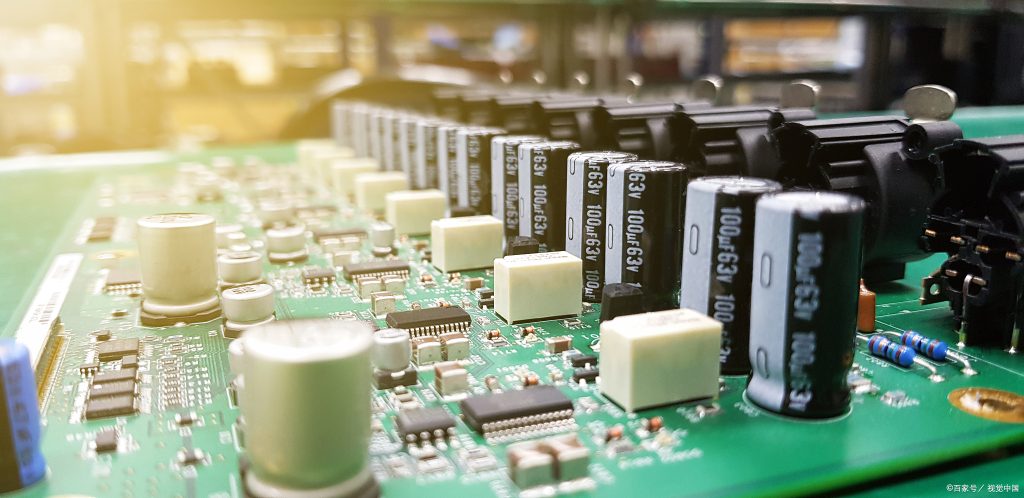

Printed circuit board design converts a circuit idea into manufacturing data that a PCB factory can build. A good design process defines the schematic, component footprints, board outline, design rules, placement, routing, checks, and fabrication outputs before the project moves to production.
Start With the Schematic and Requirements
The schematic defines the circuit connections and component relationships. It should be checked before layout begins because incorrect nets, missing power connections, wrong component values, or unclear interfaces can cause board respins later.
The design team should also define board size, connector positions, current requirements, signal speed, operating environment, and any mechanical limits. These inputs determine whether the layout is a simple board or needs closer stack-up, impedance, or thermal review.
Choose Tools and Build Accurate Footprints
PCB layout software should support the required board complexity, rule checking, output files, and library control. The software is less important than the accuracy of the data inside it. Footprints must match the selected components, package drawings, soldering method, and assembly process.
A wrong footprint can create an assembly failure even when the schematic is correct. Pad size, pitch, orientation, courtyard, silkscreen, and mechanical holes should be checked before placement.
Define Board Outline and Design Rules
The board outline, mounting holes, keep-out areas, connector edges, and component-height limits should be defined before detailed routing. Design rules should cover trace width, spacing, via size, annular ring, differential pair rules, copper clearance, and any fabrication limits from the supplier.
This stage is closely related to PCB layout knowledge, because layout rules turn the electrical design into a manufacturable board.
Place Components Before Routing
Placement affects routing quality, signal paths, heat flow, test access, assembly direction, and enclosure fit. Critical parts such as connectors, power devices, clocks, sensors, and high-speed interfaces should be placed with purpose rather than only for compactness.
Manual routing is often needed for sensitive signals, power paths, clocks, analog circuits, and controlled impedance lines. Autorouting can help in limited cases, but it should not replace engineering review.
Run Checks and Output Manufacturing Files
Design rule checking helps find spacing violations, unconnected nets, clearance issues, and other layout problems before fabrication. After the board passes checks, the designer should output Gerber files, drill files, stack-up notes, BOM-related assembly data if needed, and any fabrication drawing.
The broader PCB design and production process explains why clean design output helps the manufacturing team build the intended board.
Final Review Before Release
Before releasing data, review schematic consistency, footprint accuracy, board outline, design rules, routing priorities, DRC results, manufacturing notes, and revision control. A disciplined design process reduces avoidable fabrication and assembly risk.
The practical goal is not to finish a layout quickly. It is to release data that correctly expresses the circuit, fits the product, and gives the PCB supplier enough information to manufacture the board without guessing.
