Solder Paste Printing Quality in SMT: Main Causes and Process Checks

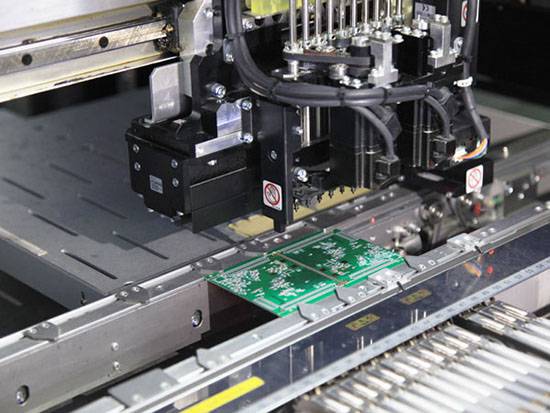

Solder paste printing is one of the first assembly steps that can decide whether SMT solder joints form correctly. Poor printing can create insufficient solder, bridging, tombstoning, open joints, or rework that should have been prevented before component placement.

Stencil and Aperture Design Control Paste Volume

The stencil defines how much solder paste is deposited on each pad. Aperture size, stencil thickness, wall condition, and cleaning frequency all affect paste release. If paste does not release evenly, some pads can receive too little solder while nearby pads receive too much.

This is closely linked to PCB pad design. The layout stage should define pads, solder mask openings, and component footprints so the assembly process has a realistic window. Basic layout decisions are covered in PCB layout knowledge.

Solder Paste Condition Affects Print Stability

Solder paste is sensitive to storage, handling, exposure time, and mixing condition. If paste viscosity changes or the material is contaminated, printing can become inconsistent. The result may not be visible until inspection shows missing deposits, slumping, or bridging.

Process teams should follow the paste supplier's handling requirements instead of relying on generic time or temperature assumptions. The important point is consistency: paste condition must match the stencil, printer setup, and production environment.

Board Support and Alignment Prevent Local Defects

PCB warpage, poor support, or inaccurate alignment can cause uneven paste thickness across the panel. Fine-pitch components are especially sensitive because small paste shifts can create bridging or insufficient wetting after reflow.

For dense assemblies, the board fabrication and assembly teams need to coordinate. Pad finish, solder mask registration, flatness, and component land pattern choices all influence the printing window. These board-level decisions connect to the broader PCB design and production process.

Inspection Should Catch Printing Problems Early

Solder paste inspection can identify missing paste, excess paste, offset, and volume variation before components are placed. Catching defects at this step is usually easier than finding them after reflow, especially under fine-pitch packages or hidden solder joints.

Assembly reliability is also relevant in products where inspection evidence matters. The healthcare PCB discussion on PCBs in healthcare and medical devices shows why process discipline and traceability can become more important when failure consequences are higher.

What Engineers Should Confirm Before SMT

Before assembly starts, confirm the stencil design, paste type, board surface finish, pad geometry, solder mask openings, support method, and inspection plan. If the design includes fine-pitch parts, BGAs, or components with uneven thermal mass, review the printing process before mass production.

Good solder paste printing is not only an assembly operator issue. It depends on the PCB design, fabrication quality, material handling, printer setup, and inspection control working together.
